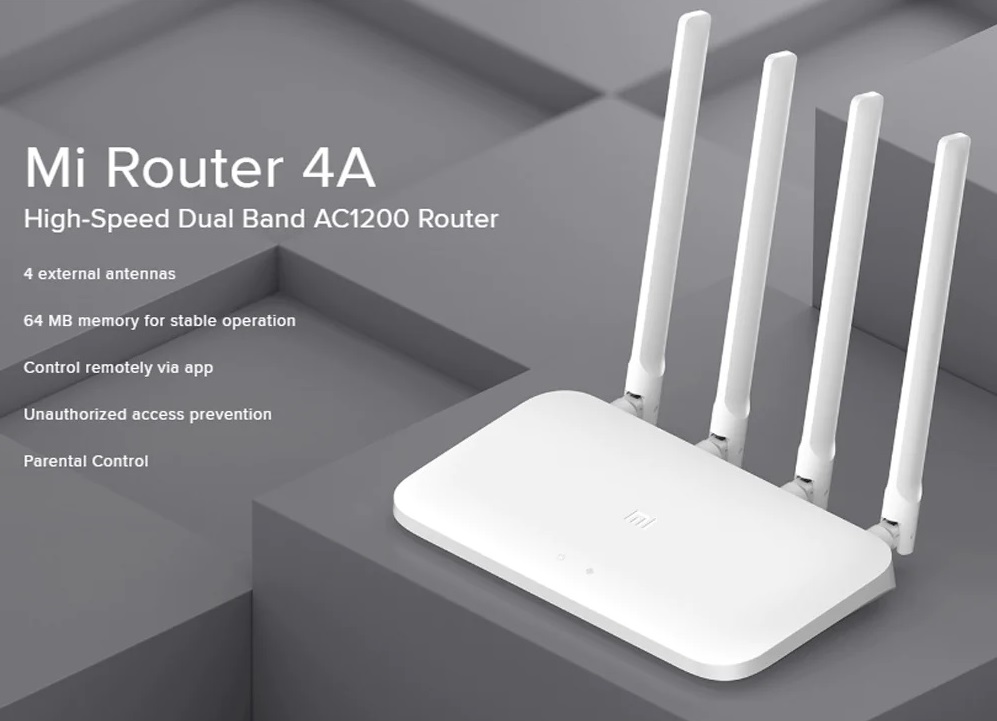

Xiaomi Mi Router 4A White | R4AC |
110.00 AED 110.00 AED
104.76 AED
Xiaomi Mi Router 4A White | R4AC |
This product is no longer available. ss
\
\
\
Features:\
Dual Core CPU for Faster Network Speed\
Featuring dual core four threading CPU, the single core frequency can reach to 880MHz. Strong performance easily support gigabit network and dual band WiFi data transmission.\
\
Wireless Dual Band\
Support 2.4GHz and 5GHz two frequency bands. The max speed rate can reach to 1167Mbps. 2.4GHz band supports longer, better coverage and through-wall performance. 5GHz band uses 802.11ac technology. Less interference, high rate. Watch HD video and play smooth game.\
\
Dual Band Shares One WiFi Name\
Xiaomi router 4A support dual band. It combines 2.4GHz and 5GHz in one WiFi name. 2.4GHz has better through-wall performance and 5GHz has higher rate.\
\
High Gain 4 Antennas for Stronger Signal\
4 external high-gain omnidirectional antennas. Hugely improves transmission performance and do great job under various complex environment.\
\
64MB Large Memory\
Smart home appliance era. More devices need stable connection. Xiaomi router 4A adopts 64MB memory that ensures stable transmission.\
\
Smart Error Correction Calculation\
5GHz frequency support LDCP error correction calculation. Strengthen anti-interference performance. Boost WiFi signal and improve transmission speed rate\
\
Package list:\
1 * Router-CN version\
1 * Power Adapter\
1 * User Manual\
\
\
Brief appearance, suitable for various home style
\
White frosted plastic case with simple geometry appearance, integrating into various home styles easily.
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
\
Hardware
\
\
Brand
\
\
Xiaomi
\
\
CPU
\
\
MT7621A
\
\
RAM
\
\
64 MB DDR3
\
\
ROM
\
\
16MB
\
\
2.4G WiFi
\
\
2X2 (support IEEE 802.11N, 300Mbps max)
\
\
5G WiFi
\
\
2X2 (support IEEE 802.11AC, 867Mbps max)
\
\
Antenna
\
\
4 PCS
\
\
Heat dissipating system
\
\
Natural heat dissipation
\
\
Material
\
\
ABS
\
\
Interfaces
\
\
Lan port
\
\
2 (10/100 Auto MDI/MDIX)
\
\
WAN port
\
\
1 (10/100 Auto MDI/MDIX)
\
\
LED indicators
\
\
3 (Red/Blue/Yellow)
\
\
Button
\
\
1 x Reset button
\
\
DC input
\
\
1
\
\
Antenna
\
\
Dual bands
\
\
2.4GHz / 5GHz
\
\
Wireless channels
\
\
2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
\
\
5GHz Channel: 36,40,44,48,52,56,60,64,149,153,157,161,165
\
\
Modulation mode
\
\
11b: DSSS: DBPSK(1Mbps),DQPSK(2Mbps),
\
\
CCK(5.5/11Mbps)
\
\
11a/g: OFDM:BPSK(6/9Mbps),
\
\
QPSK(12/18Mbps),16QAM(24/36Mbps),
\
\
64QAM(48/54Mbps)
\
\
11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
\
\
Rate: MCS0~MCS15
\
\
11ac: MIMO-OFDM:BPSK,
\
\
QPSK,16QAM,64QAM,256QAM
\
\
Rate: MCS0~MCS9
\
\
Receiving sensitivity
\
\
11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
\
\
HT20 MCS7:≤-69dBm,
\
\
HT40 MCS7:≤-66dBm,
\
\
VHT20 MCS8:≤-65dBm,
\
\
VHT40 MCS9:≤-60dBm,
\
\
VHT80 MCS9:≤-58 dBm
\
\
Software
\
\
Operating system
\
\
MiWiFi ROM (Supports Web, Android, iOS)
\
\
Wireless security
\
\
WPA-PSK/WPA-PSK2 encryption, Wireless access control (black and white list), SSID hiding
\
\
Protocol standards
\
\
IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
\
\
Approval standards
\
\
GB9254-2008 YD/T993-1998 GB4943.1-2011
\
\
Working environment
\
\
Operating temperature: 0-40°C
\
\
Working humidity: 10%-90%RH
\
\
Storage temperature : -40-70°C
\
\
Storage humidity: 5%-90%RH
\
\
Power: 12W max
\
\
\
\
