Features:

\

\
• Product model: MJJGCJYD001QW.
\
• Size: 80 x 35 x 21mm.
\
• Net Weight: about 60g.
\
• Measuring range: 0.05-50m.
\
• Measurement accuracy: ± (3mm + 5 x 10^(-5) D*).
\
• Charging parameters: 5V-1A.
\
• Minimum display unit: 0.001m.
\
• Bluetooth transmission distance: about 8m (barrier-free).
\

\

Description:

\

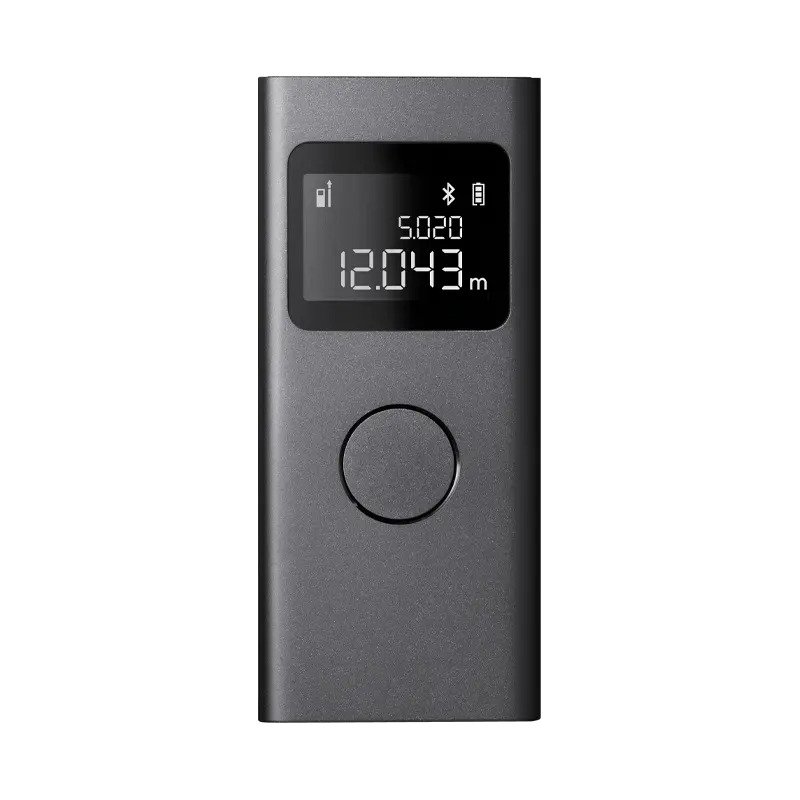

Xiaomi Mi Smart Laser Rangefinder Real time Distance Meter Area Volume Angle Pythagorean LCD Display Portable Laser Range Finder Tape Measure Work with Bluetooth, Mi Home APP Xiaomi Smart Laser Measure Smart Laser Measure Easy measurement anytime, anywhere High-precision real-time measurement at the push of a button | 3mm high precision Intelligent measurement technology for practice | Synchronous data storage Real-time measurement for all requirements After briefly pressing the button to trigger the laser, the length can be read in real time. The measurement is made with a precise and stable Class II* laser that reaches distances between 5 cm and 50 m. Measure everything at any time. Dual transmission with one receiver Measuring accuracy in the millimeter range Equipped with a laser with double emission and single reception. The complex procedures of setting the laser emission > calibration > data display can be completed immediately. The data accuracy is ±3 mm. Quick measurement with one hand in different scenarios From large areas like a new home or warehouse to door and window sizes, the results of the measurement are instantly visible with a tap. Extend the range of functions via the Mi Home/Xiaomi Home app By connecting a smartphone via Bluetooth, the laser meter can be connected to Mi Home/Xiaomi Home APP to realize more functions such as data sync/annotation, length/area/volume calculation, site plan mapping, map sharing and effect display. High brightness LCD display Clear and simple With the high-brightness LCD display, current measurement data, historical measurement data, scale measurement, unit of measurement, battery status, and Bluetooth connection status can be seen at a glance. Matt surface Wear and scratch resistant Lightweight aluminum alloy and high-strength engineering plastics provide an attractive matte finish. Matt surface with a pleasant feel Cordless lithium battery Type-C connector for easy charging and long battery life 370mAh high-capacity lithium battery to measure 3,000 sets of data on a full charge. The Type-C charging port can use the charging cable of other electronic devices such as smartphones.

\

Package List:

\

\
• 1 x Laser rangefinder.
\
• 1 x Charging Cable.
\
• 1 x Manual.
\

\

\

High-precision Measurement

\

Mijia APP Smart Measurement

\

Full Power Measurement 3000 Times

\



\

Industrial Grade Durability Test

\

\



\

Real time Distance Meter

\

After the laser is fired in real time, the rangefinder will display the current length in real time. Choose a precise and stable second class laser, as close as 5m and as far as 40m.

\

\

Double-issue Single-receive , mm Measurement Accuracy

\



\



\

Double-issue Single-receive laser, laser emission-calibration-display data, the accuracy can reach ±3mm.

\

Double-issue Single-receive , Laser Accuracy

\

\

House Measurement , Soft Package Measurement

\



\

\

Decoration Measurement , Furniture Measurement

\



\

\

Mijia APP , Multiple Functions

\



\

Connect the mobile phone via Bluetooth and link with the Mijia app to realize data synchronization/remarks, length/area/volume calculation, floor plan surveying and mapping, drawing sharing and other functions.

\

* Rangefinder to connect the Mijia app, need 6.9.200 version or higher.

\

\

Floor Plan  / Real Scene Painting Measurement

\



\

You can directly draw a floor plan in the Mijia APP or take real photo and then draw and measure. The measured data is automatically marked to the selected line, APP intelligently adjusts the length of the line according to the marked data.

\



\

Area / Volume / Length Calculation

\

You can flexibly select the existing length, width, and height data for area and volume calculations, and you can also simply add and subtract to calculate the length.

\

\

Remote Measurement

\



\



\

The mobile phone can be used as a "distance finder remote control" to remotely control the rangefinder

\

measurement. It is suitable for the scene where the rangefinder/human-machine separation must be placed at a fixed point.

\



\

\

Single Button Design

\



\

Long press for 2s to turn on, short press to start measurement, double click to switch between front and back benchmarks.

\



\

Long Press 2s - Turn on/off

\



\

Short Press - Start/end measurement, record measurement data

\

Double click - Before and after switching benchmarks

\

High Brightness LCD Screen

\

High Brightness LED Screen , Display of current measurement data, historical measurement data, measurement reference, measurement unit, power, and Bluetooth connection status.

\

Measurement standard/laser emission reminder

\

Bluetooth connection status

\

Electric quantity

\

Historical measurement data

\

Current measurement data

\

Unit of measurement (M/FT)

\

\

Double Matte Material , Anti-wear Scratch-resistant

\



\

Aluminum alloy + high-strength engineering plastics, dual materials to create a matte appearance.

\

\

Wireless Charging Design

\



\

Type-C Charging Long Battery Life

\

370mAh Large capacity lithium battery , 3000 sets of data can be measured at full power

\
