⚠️ ⚠️ 🚨 🚨 Attention ⚠️ ⚠️ 🚨 🚨:

This screen does not support a SIM card. The screen only works with Wi-Fi.

Technical Specifications & Parameters

Display:

• Screen Size: 13.3 inches
• Resolution: 1920(w) x 3 (RGB) x 1080(H)

Ports and Connectivity:

• Audio Output: Stereo
• Video Output: Complex video signal output (AV)
• USB Port: MS/MMC/SD Card support
• HDMI: Supports HDMI 2.0/1.4b, HDMI ARC, MHL 3.0/2.1 input
• TF Card Slot: Supports high-speed SDIO 3.0 with max capacity of 1 TB
• USB Host: Dual high-speed USB 2.0 Host

Video System:

• Video Format Support: PAL / NTSC / AUTO
• Video Decoder:
  • HEVC/H.265: 3840 × 2160 @ 60fps
  • H.264: 1080P @ 60fps
  • SVC: 1080P @ 60fps
  • MVC: 1080P @ 60fps
  • MPEG-4: 1080P @ 30fps
  • MPEG-2: 1080P @ 60fps
  • MPEG-1: 1080P @ 60fps
  • VC1: 1080P @ 60fps
  • JPEG: Decoding support
  • RV: 1080P @ 60fps
  • VP6, VP7, VP8: 1080P @ 60fps
  • WebP: 1080P @ 60fps
  • AVS+: 1080P @ 60fps
  • RMVB: 1080P @ 60fps

Wireless Connectivity:

• Wi-Fi: 2.4GHz / 5GHz support
• Miracast: Android / Phone wireless Miracast support
• Airplay: iPhone Airplay wireless Miracast

Audio System:

• Stereo Audio Input: Supported
• Stereo Earphone Output: Supported
• Built-in Speakers: 2 x 5W @ 4-ohm
• FM Transmission: Stereo audio transmission, frequency range 76 MHz - 108 MHz
• Infrared: Stereo infrared transmission support

Power:

• Voltage: DC 12V / 1.5A
• Power Consumption: Approx. 12W
• Rated Power: 9.6W
• Rating Circuit: 800mA
• Max Voltage Input: Up to 36V

Temperature and Environmental Conditions:

• Working Temperature: -20°C to +60°C
• Working Humidity: 15% to 75% (No condensation)

Additional Features:

• Automatic Sleep/Shutdown: Automatically enters sleep or shutdown mode upon ACC power off
• Low Battery Protection: Monitors battery and protects against low voltage
• Power Supply Reversal Protection: Prevention of reverse power supply damage
• Super Multimedia Processing: Supports up to 4K/8K H.265 video playback

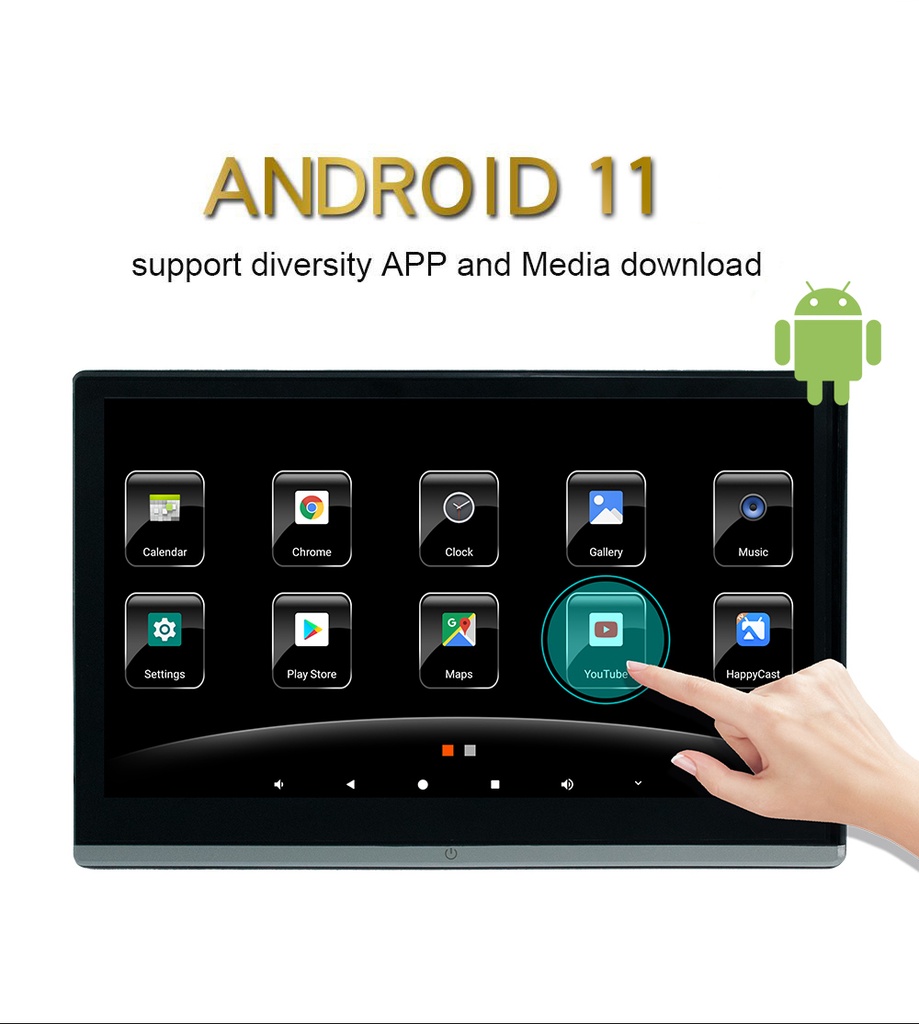

• Android Operating System: Supports Android apps and features
